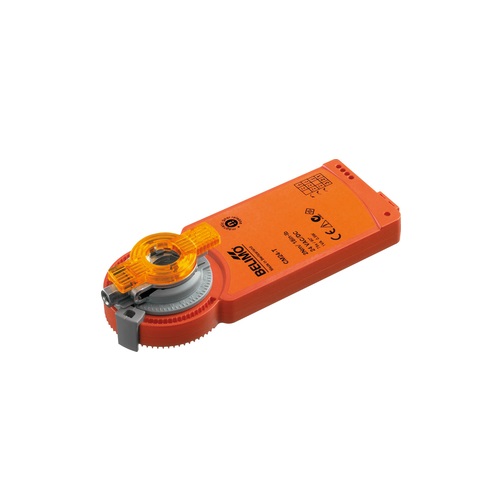

CM24-T-L Rotary actuator, 2 Nm, AC/DC 24 V, Open/close, 3-point, 75 s, IP20, Terminals

Voltage AC/DC AC/DC 24 V

Power consumption (running) 0.5 W

Power consumption (holding) 0.2 W

Power Consumption For Wire Sizing 1 VA

Connection Supply Control Terminals 1.5 mm² Cu wire or 1.0 mm² Cu strands (3-wire)

Torque 2 Nm

Control type Open/close

3-point

Direction Of Motion Motor counter-clockwise rotation

Manual override With magnet

Angle of rotation 0...287.5

Running time (motor) 75 s / 90°

Mechanical interface Universal shaft clamp 6...12.7 mm

Protection category IP20

Degree Of Protection NEMA NEMA 1

Enclosure Type UL Enclosure Type 1

Ambient Temperature -30...50°C [-22...122°F]
