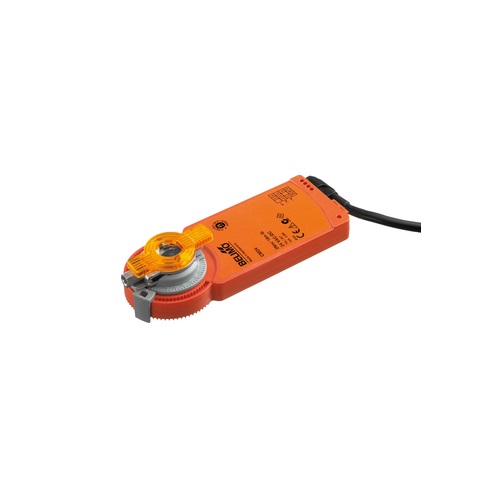

CM24-L Rotary actuator, 2 Nm, AC/DC 24 V, Open/close, 3-point, 75 s, IP54
Voltage AC/DC AC/DC 24 V
Power consumption (running) 0.5 W
Power consumption (holding) 0.2 W
Power Consumption For Wire Sizing 1 VA
Connection Supply Control Cable 1 m, 3x 0.75 mm²
Torque 2 Nm
Control type Open/close
3-point
Direction Of Motion Motor counter-clockwise rotation
Manual override With magnet
Angle of rotation 0...287.5
Running time (motor) 75 s / 90°
Mechanical interface Universal shaft clamp 6...12.7 mm
Protection category IP54
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temperature -30...50°C [-22...122°F]
