082H0162 AMV435

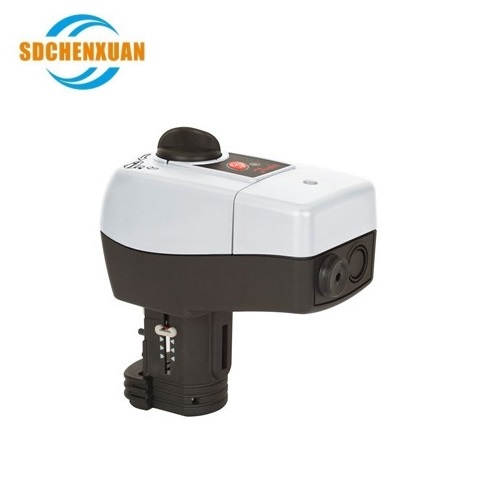

Electrical actuators AMV 435 24V 7,5-15s/mm 20mm 400N
Electrical actuators AMV435 24V 7,5-15s/mm 20mm 400N
Technical Specifications
Gross weight: 0.71 kg
Net weight: 0.58 kg
EAN: 5710104007007
Gross weight: 0.71 kg
Net weight: 0.58 kg
EAN: 5710104007007
Actuator speed [s/mm]: 8 s/mm 15 s/mm
Actuator type: Electrical
Ambient temperature [°C] [Max]: 55 °C
Ambient temperature [°C] [Min]: 0 °C
Application: HVAC
Closing force [N]: 400 N
Control signal type: 3-point
Description: AMV 435 24V 7,5-15s/mm 20mm 400N
Grade of enclosure: IP54
Manual operation: Yes
Position feedback: no - potentiometer needed
Power consumption [W]: 2 W
Product group: Electrical actuators
Protection class: II
Safety function: 0
Speed type: Standard
Spring down (return): No
Spring up: No
Storage temperature [°C] [Max]: 70 °C
Storage temperature [°C] [Min]: -40 °C
Stroke [mm]: 20 mm
Supply voltage [V] AC: 24 V
Supply voltage [V] DC: 24 V
Type: AMV 435
