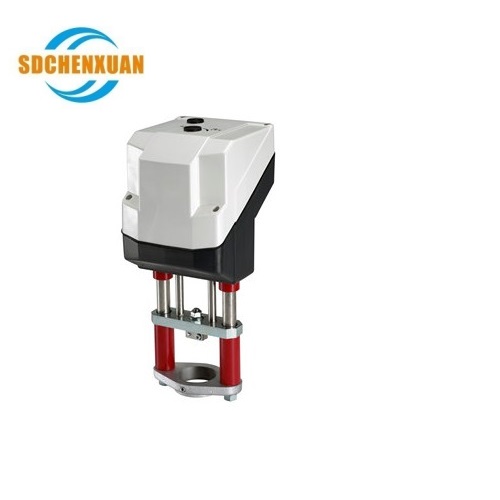

AMV85 082G1451
230V 8s/mm 40mm 5000N
Electrical actuators, AMV 85, 230 V AMV 85 230V 8s/mm 40mm 5000N Technical Specifications Gross weight: 10.42 kg Net weight: 9.73 kg EAN: 5702421507599 Gross weight: 10.42 kg Net weight: 9.73 kg EAN: 5702421507599 Actuator speed [s/mm]: 8 s/mm Actuator type: Electrical Ambient temperature [°C] [Max]: 55 °C Ambient temperature [°C] [Min]: 0 °C Application: HD HVAC and DH Closing force [N]: 5000 N Control signal type: 3-point Description: AMV 85 230V 8s/mm 40mm 5000N Frequency [Hz]: 50/60 Grade of enclosure: IP54 Manual operation: Yes Position feedback: no - potentiometer needed Power consumption [W]: 11 W Product group: Electrical actuators Protection class: II Safety function: 1 Speed type: Standard Spring down (return): No Spring up: No Storage temperature [°C] [Max]: 70 °C Storage temperature [°C] [Min]: -40 °C Stroke [mm]: 40 mm Supply voltage [V] AC: 230 V Turn time per 90° [s]: 0 s Type: AMV 85
